The Ultimate Guide to Software Development Design Patterns (With Code Samples and Diagrams!)
What Are Software Development Design Patterns?
Software Development Design Patterns are proven, reusable solutions to common software design problems. They provide a structured approach to writing code, improving maintainability, scalability, and flexibility. Instead of reinventing the wheel, developers can rely on these patterns to solve problems efficiently while following industry best practices.
Key Characteristics of Design Patterns
- Reusable Solutions: Patterns offer generalized solutions that can be adapted to specific use cases.
- Best Practices: They encapsulate expert knowledge and experience, ensuring high-quality design.
- Common Language: They establish a shared vocabulary among developers, making collaboration easier.
- Flexibility & Scalability: They improve code modularity and make future modifications easier.
- Proven Over Time: They are derived from real-world software development challenges and are widely adopted.
History of Design Patterns
The concept of design patterns was popularized in software engineering by the “Gang of Four” (GoF)—Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides—in their 1994 book, Design Patterns: Elements of Reusable Object-Oriented Software. The book categorized design patterns into Creational, Structural, and Behavioral patterns, which remain widely used today.
Why Are Design Patterns Important?
- Enhance Maintainability: Code following design patterns is easier to read, understand, and modify.
- Improve Code Reusability: Patterns reduce redundancy and improve efficiency.
- Encourage Scalability: Well-structured code is easier to scale as software requirements grow.
- Support Best Practices: Using established patterns prevents bad coding habits and anti-patterns.
Types of Design Patterns
Design patterns are typically categorized into three main types:
Creational Patterns (Focus on object creation)
- Singleton: Ensures that a class has only one instance and provides a global point of access.
- Factory Method: Provides an interface for creating objects but allows subclasses to alter the type of objects created.
- Abstract Factory: Creates families of related objects without specifying their concrete classes.
- Builder: Separates the construction of a complex object from its representation.
- Prototype: Creates new objects by copying an existing object.
Structural Patterns (Focus on object composition)
- Adapter: Allows incompatible interfaces to work together by acting as a bridge.
- Decorator: Dynamically adds behavior or responsibilities to objects without modifying their code.
- Facade: Provides a simplified interface to a complex system of classes.
- Composite: Treats individual objects and compositions of objects uniformly.
- Proxy: Controls access to another object, such as for security or performance reasons.
Behavioral Patterns (Focus on communication between objects)
- Observer: Defines a dependency between objects so that when one changes state, all its dependents are notified.
- Strategy: Defines a family of algorithms, encapsulates them, and makes them interchangeable.
- Command: Encapsulates a request as an object, allowing parameterization and queuing of requests.
- Mediator: Reduces direct dependencies between objects by introducing a mediator.
- State: Allows an object to change its behavior when its internal state changes.
Here’s a detailed explanation of each Design Patterns:

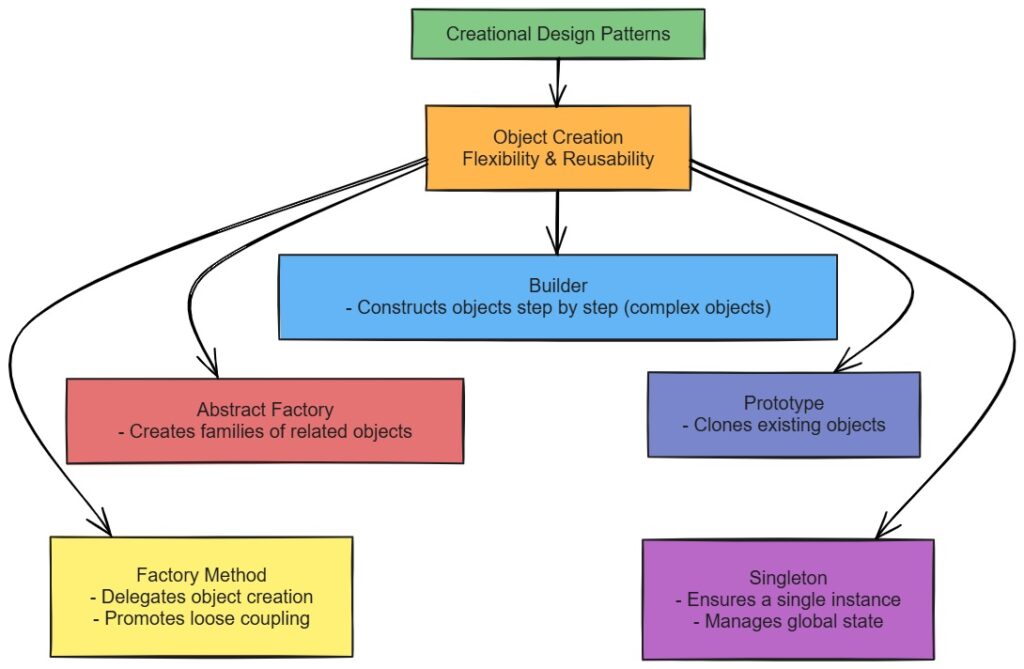

Creational Design Patterns: Efficient Object Creation
Creational design patterns deal with object instantiation by providing flexible, reusable, and scalable solutions. Instead of directly instantiating objects using the new keyword, these patterns encapsulate the object creation logic, allowing greater flexibility and decoupling between the code and the created objects.
These patterns ensure:
✅ Encapsulation of instantiation logic (hiding complex creation processes).
✅ Improved code reusability and flexibility (switching between different implementations is easier).
✅ Better management of object lifecycles (reducing memory and performance issues).
Types of Creational Patterns
1. Singleton Pattern (Ensure a Single Instance)
Ensures that a class has only one instance throughout the program and provides a global access point to it.
When to Use It?
When a single shared resource (e.g., logging service, database connection) is required.
To control access to a shared state (e.g., configuration settings).
Implementation (C# Example)
2. Factory Method Pattern (Encapsulating Object Creation)
Defines an interface for creating objects, but allows subclasses to determine the actual implementation.
When to Use It?
When the exact type of object to be created isn’t known until runtime.
When you need to decouple object creation from the main logic.
Implementation (C# Example)
✅ Encapsulates object creation and promotes loose coupling.
3. Abstract Factory Pattern (Creating Families of Related Objects)
Provides an interface for creating families of related objects without specifying their concrete classes.
When to Use It?
When you need to create multiple related objects that must be used together.
When object creation depends on a specific theme/configuration (e.g., GUI toolkits with different themes).
Implementation (C# Example)
✅ Decouples product creation from its implementation.
4. Builder Pattern (Constructing Complex Objects Step by Step)
Separates the construction process of a complex object from its representation, allowing different representations using the same construction process.
When to Use It?
When creating complex objects with multiple optional attributes.
When you need step-by-step construction and want to avoid a large constructor with multiple parameters.
Implementation (C# Example)
✅ Fluent API, step-by-step object creation, and readable code.
5. Prototype Pattern (Cloning Objects)
Allows creating new objects by copying an existing object (cloning) instead of creating from scratch.
When to Use It?
When object creation is costly (e.g., database operations, network calls).
When you need duplicate objects with minor modifications.
Implementation (C# Example)
✅ Efficient cloning instead of expensive instantiation.
Conclusion
Creational patterns improve object creation efficiency, scalability, and flexibility in software development. Each pattern serves a specific use case:
Singleton: Single instance access.
Factory Method: Dynamic object creation.
Abstract Factory: Creating related object families.
Builder: Step-by-step object creation.
Prototype: Cloning existing objects.
By choosing the right pattern for your scenario, you can enhance code reusability, maintainability, and flexibility. 🚀

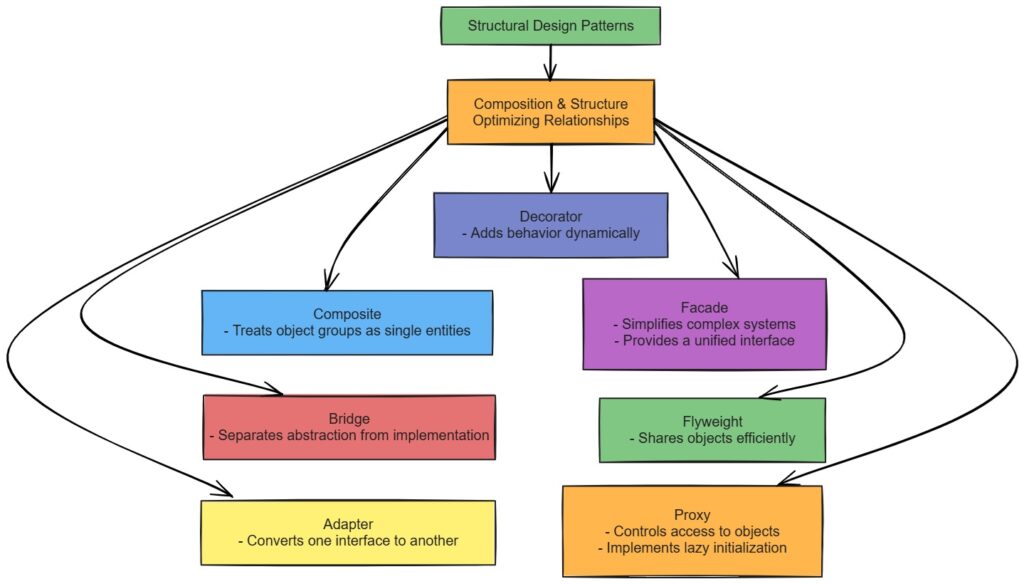

Structural Design Patterns: Efficient Object Composition
Structural design patterns focus on how classes and objects are composed to form larger structures while ensuring flexibility and efficiency. These patterns simplify relationships between objects, making it easier to create complex systems while maintaining loose coupling and reusability.
Why Use Structural Design Patterns?
✅ Improve Code Organization – Helps arrange classes and objects efficiently.
✅ Encapsulate Complexity – Provides an abstraction over complex systems.
✅ Enhance Maintainability – Promotes modular and loosely coupled code.
✅ Promote Reusability – Encourages composition over inheritance.
Types of Structural Patterns
1. Adapter Pattern (Bridging Incompatible Interfaces)
Allows two incompatible interfaces to work together by providing a wrapper (adapter) that translates requests from one interface to another.
When to Use It?
When working with legacy code that has an incompatible interface.
When integrating third-party libraries that don’t match your existing code.
Implementation (C# Example)
✅ Bridges compatibility issues without modifying existing code.
2. Decorator Pattern (Dynamically Adding Behavior)
Allows adding new functionality to an object dynamically at runtime without modifying its structure.
When to Use It?
When you need flexible feature additions without altering existing code.
When subclassing would lead to a combinatorial explosion of classes.
Implementation (C# Example)
✅ Enhances flexibility by dynamically modifying objects at runtime.
3. Facade Pattern (Simplifying Complex Subsystems)
Provides a unified, simplified interface to a set of complex subsystems, making it easier to use them.
When to Use It?
When dealing with a complex system with many interdependent classes.
When you need a simpler API for client code.
Implementation (C# Example)
✅ Reduces system complexity and promotes better encapsulation.
4. Composite Pattern (Hierarchical Structures)
Allows treating individual objects and compositions uniformly, making it easier to work with tree structures.
When to Use It?
When working with hierarchical structures like trees.
When you need to treat single objects and collections uniformly.
Implementation (C# Example)
✅ Simplifies hierarchical structures (e.g., UI elements, file systems).
5. Proxy Pattern (Controlling Access)
Acts as a substitute or intermediary for another object, controlling access to it.
When to Use It?
When you need lazy initialization (loading objects only when needed).
When implementing security, logging, or caching before accessing an object.
Implementation (C# Example)
✅ Improves performance (e.g., virtual proxies, caching proxies).
Conclusion
Structural design patterns help in organizing and optimizing object relationships in software systems. Each pattern serves a unique purpose:
Adapter – Bridges incompatible interfaces.
Decorator – Adds behavior dynamically.
Facade – Simplifies a complex subsystem.
Composite – Works with hierarchical structures.
Proxy – Controls access to an object.
By applying these patterns, you can make your software more modular, reusable, and scalable. 🚀

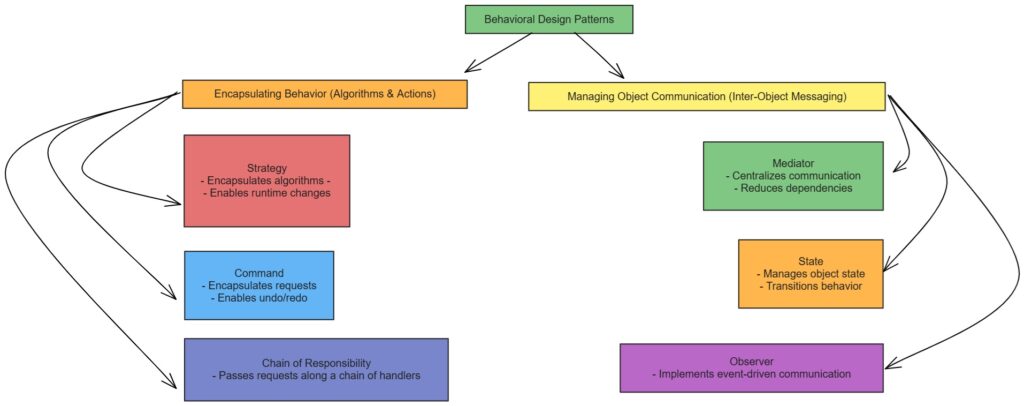

Behavioral Design Patterns: Managing Object Interactions
Behavioral design patterns focus on how objects interact and communicate with each other. These patterns improve flexibility, scalability, and maintainability by reducing dependencies between objects and ensuring efficient execution of behaviors.
Why Use Behavioral Patterns?
✅ Promotes Loose Coupling – Reduces dependencies between objects.
✅ Encapsulates Behaviors – Defines clear interaction rules.
✅ Increases Code Flexibility – Enables runtime behavior changes.
✅ Enhances Code Maintainability – Avoids hardcoded logic in objects.
Types of Behavioral Patterns
1. Strategy Pattern (Encapsulating Algorithms)
Defines a family of algorithms, encapsulates each one, and allows switching between them at runtime without altering client code.
When to Use It?
When multiple algorithms exist for a task and should be interchangeable.
When if-else or switch-case statements are becoming complex.
Implementation (C# Example)
✅ Encapsulates algorithms, making them interchangeable.
2. Observer Pattern (Publish-Subscribe Model)
Defines a dependency between objects so that when one changes, all dependents are notified automatically.
When to Use It?
When implementing event-driven systems (e.g., UI event listeners, notifications).
When multiple objects must react to changes in another object.
Implementation (C# Example)
✅ Promotes decoupled communication between objects.
3. Command Pattern (Encapsulating Requests)
Encapsulates a request as an object, allowing parameterization and queuing of requests.
When to Use It?
When implementing undo/redo operations.
When executing commands dynamically at runtime.
Implementation (C# Example)
✅ Encapsulates requests, enabling better command execution and undo operations.
4. Chain of Responsibility Pattern (Passing Requests Along a Chain)
Allows multiple handlers to process a request sequentially until one handles it.
When to Use It?
When multiple objects might handle a request, but the exact handler is unknown.
When implementing logging, validation, authentication flows.
Implementation (C# Example)
✅ Promotes flexible request handling without hardcoded conditions.
5. Mediator Pattern (Centralized Communication)
Encapsulates communication between objects, reducing direct dependencies.
When to Use It?
When objects communicate too much, causing tight coupling.
When implementing chat rooms, traffic control, UI interactions.
Implementation (C# Example)
✅ Reduces direct dependencies between objects, improving maintainability.
6. State Pattern: Managing Object Behavior Based on State
What is the State Pattern?
The State Pattern allows an object to alter its behavior when its internal state changes, making it appear as if the object changed its class. Instead of using complex if-else or switch statements, the State Pattern encapsulates different behaviors into separate state classes and dynamically changes them at runtime.
Key Benefits
✅ Encapsulates State-Specific Behavior – Avoids scattered if-else conditions.
✅ Promotes Open-Closed Principle – Easily add new states without modifying existing code.
✅ Improves Maintainability – Organizes code by grouping behavior into state classes.
When to Use the State Pattern?
When an object has multiple states, and its behavior changes based on its current state.
When you want to avoid large if-else or switch-case statements for handling state changes.
When you need to ensure that only valid state transitions occur (e.g., order processing, workflow management, traffic lights).
State Pattern – Implementation Example (C#)
Scenario: A simple Document Workflow System where a document can be in different states:
Draft (Initial State)
Moderation (Waiting for approval)
Published (Approved and visible)
Each state has different behaviors when transitioning to the next state.
Step 1: Define the State Interface
Each state will implement an interface defining possible actions.
Step 2: Create Concrete State Classes
Each class represents a specific state and defines behavior for transitioning to other states.
Step 3: Create the Context Class
This class maintains the current state and delegates actions to the current state.
Step 4: Client Code
The client interacts with the Document class without worrying about state-specific logic.
Output:
Key Takeaways
✔ Encapsulates behaviors into separate state classes instead of using long if-else conditions.
✔ Allows an object to change behavior dynamically by switching states.
✔ Follows the Single Responsibility Principle (SRP) by keeping each state’s logic separate.
When NOT to Use the State Pattern?
❌ If there are only two states with minimal behavior changes, a simple boolean flag (isActive, isEnabled) may be sufficient.
❌ If state transitions rarely change, using enums or simple conditions might be more efficient.
Real-World Examples of the State Pattern
Traffic Light System (Red → Yellow → Green)
Order Processing System (New → Processing → Shipped → Delivered)
ATM Machine (Idle → Card Inserted → Processing → Transaction Complete)
Conclusion
Behavioral patterns focus on communication, control, and execution in software systems:
Strategy – Switch between algorithms dynamically.
Observer – Implement event-driven communication.
Command – Encapsulate and queue requests.
Chain of Responsibility – Pass requests along handlers.
Mediator – Centralize object communication.
State – helps manage state-dependent behavior dynamically while keeping the code clean, maintainable, and scalable. By using separate state classes, you avoid complex conditionals and ensure proper transitions between states
By applying these patterns, your software will become more modular, maintainable, and adaptable! 🚀
Main Conclusions
Design patterns are the language of software architecture. By understanding and applying the correct patterns:
You write more modular and flexible code.
Your solutions become easier to understand, maintain, and scale.
You communicate design intentions more effectively across teams.
Whether you’re building a microservice backend, a UI component library, or a scalable system, design patterns are a key part of your developer toolbox. So start practicing them in your daily coding work—and see your solutions evolve from functional to elegant.
🚀 Ready to take your code to the next level? Design patterns are the way.
Let's talk about your next project
Near Coding
Nearshore Software Services Partner
Service oriented, cost-effective, reliable and well-timed specialized in Software Development and located in Costa Rica
